How To Stack Your Washer and Dryer Video

Issue

Learn how to stack your Westinghouse washer and dryer in this how-to video

Applies to

• Front Load Washer
• Tumble Dryer

Solution

Installation Procedure

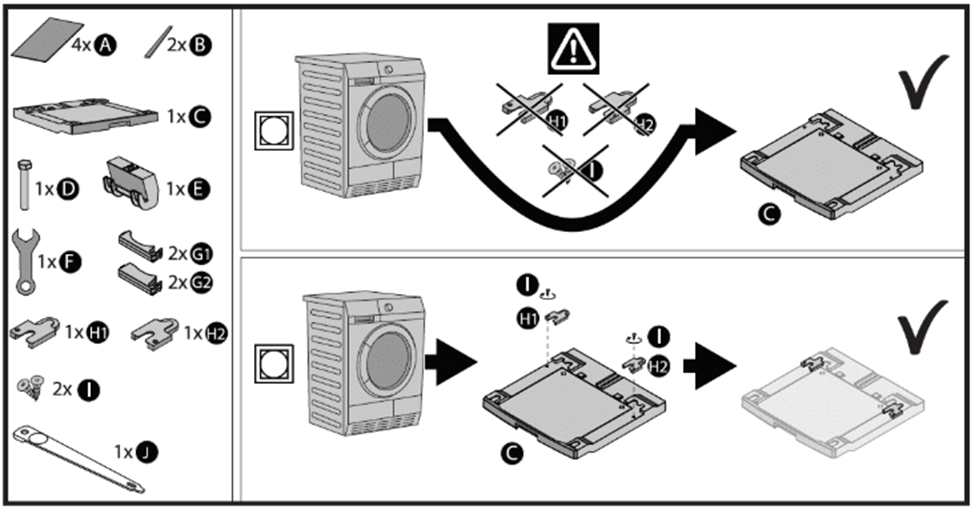

Parts included, Kit is suitable for full size and short cabinet dryers

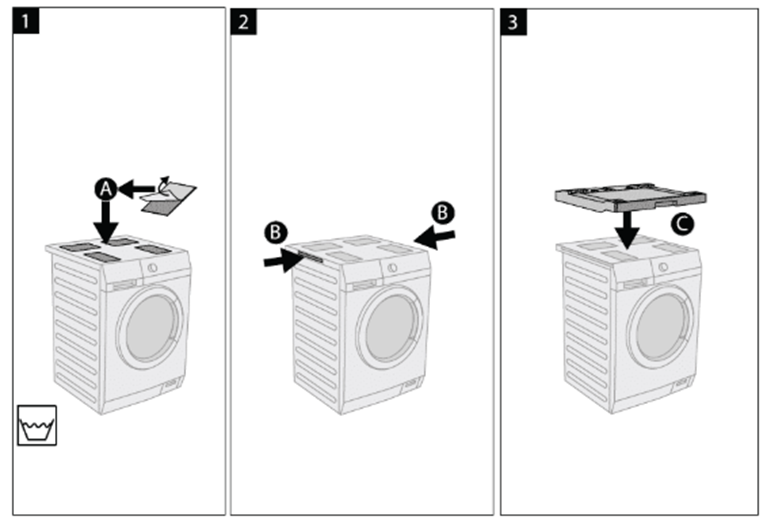

Step 1

Adhere the 4 double sided tape pieces to your washer. Adhere the left and right double-sided tape pieces

Position the stacking unit on top of your washer

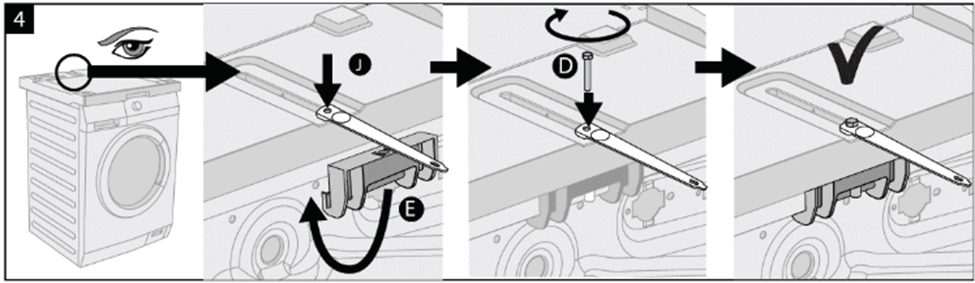

Step 2

Fit the clamp and tilt prevention strap to the rear of the washer and secure it with the bolt

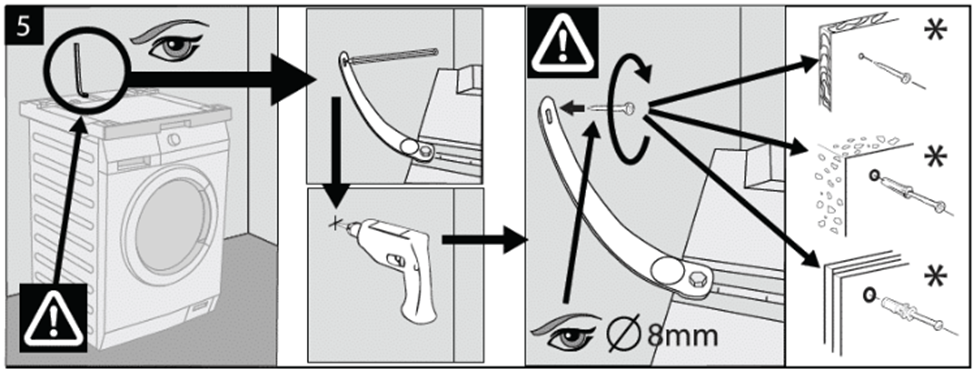

Step 3

Secure tilt prevention strap to the wall using a suitable fastener

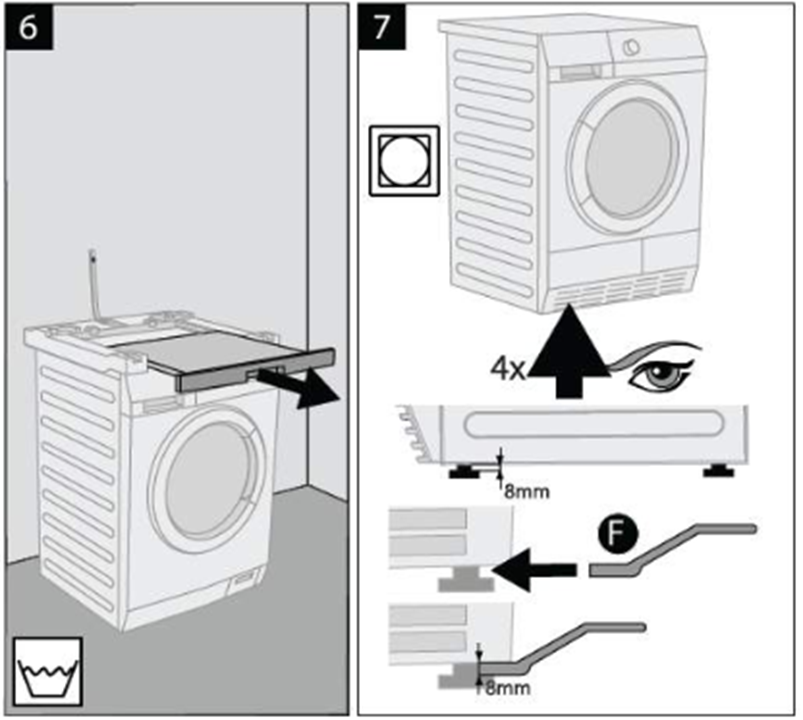

Step 4

Pull the shelf forward and ensure there is an 8mm space between the feet of the dryer

Step 5

Safely place the dryer over the washing machine. Slide the dryer onto the stacking kit to hook the dryer feet into position. Lock the front feet into position with the clips supplied.
