How To Reverse Door Video | Dryer

Issue

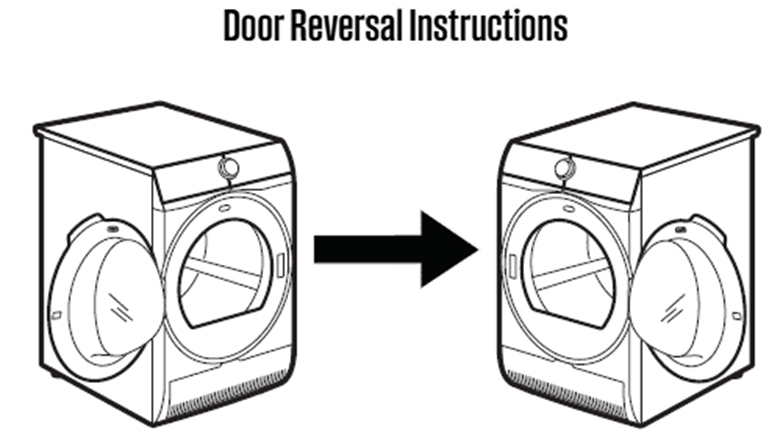

Learn how to reverse the door of your Westinghouse Dryer

Applies to

• EasyCare Heat Pump Dryer

Solution

Step 1 - Unscrew the top and bottom screws Lift up to release and remove the door

Step 2 - Unscrew and remove all screws from the door frame

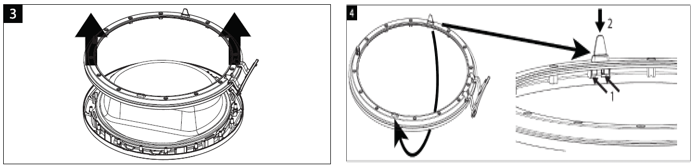

Step 3 - Remove the grey door frame

Step 4 - Press and release the door guide and fit it to the opposite side

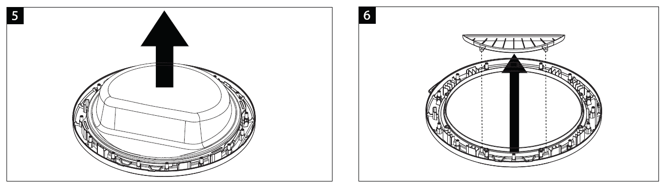

Step 5 - Lift and remove the inner window

Step 6 - Remove cover piece

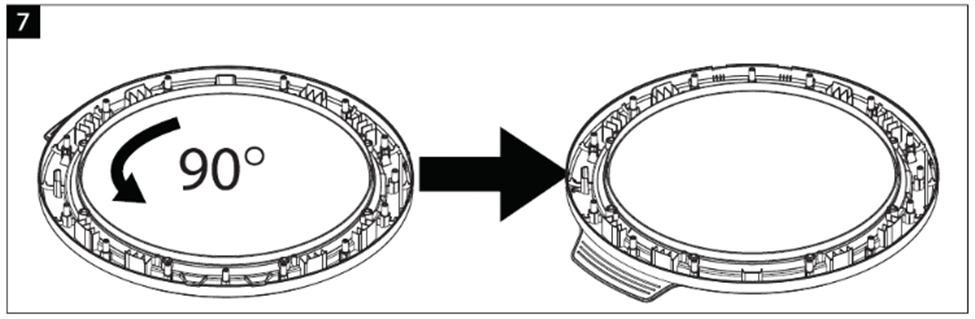

Step 7 - Rotate the outer frame

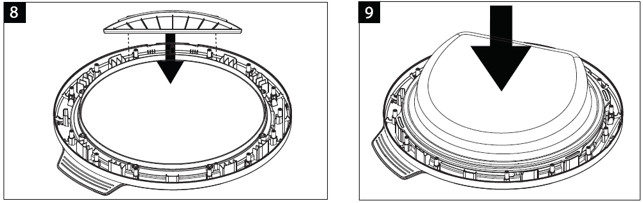

Step 8 - Replace cover piece to the outer frame

Step 9 - Correctly place the inner window on the outer frame

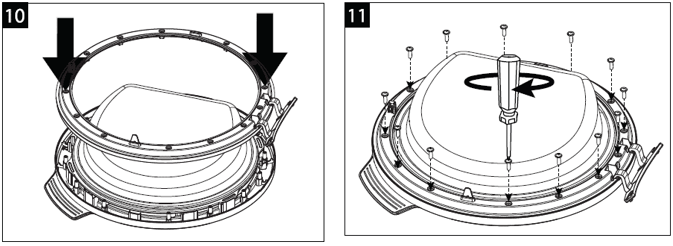

Step 10 - Refit the frame, repositioning with the guide at the top of the door

Step 11 - Reinstall the screws back into the door frame

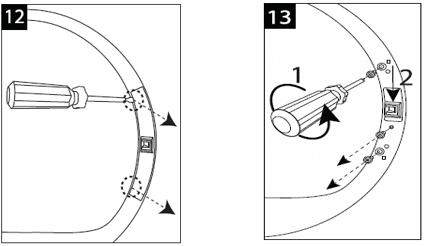

Step 12 - Detach the door lock cover plate from the dryer

Step 13 - Unscrew and remove the 3 screws. Push up to release and remove the door lock

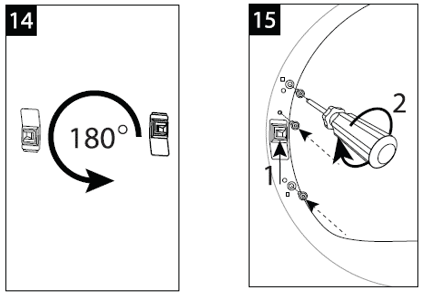

Step 14 - Relocate the door lock to the opposite side

Step 15 - Refit the 3 screws to secure in place

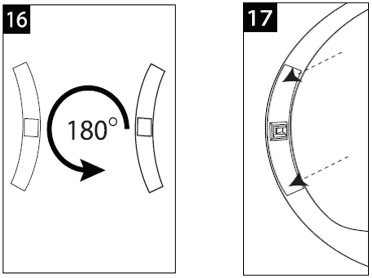

Step 16 - Relocate the door lock cover plate to the opposite side

Step 17 - Refit the door lock cover plate

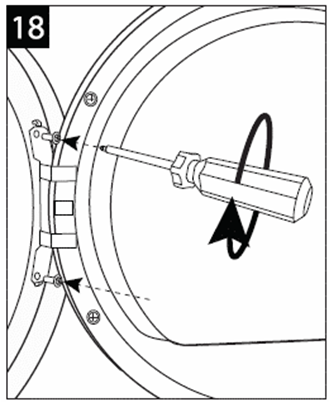

Step 18 - Refit the dryer door on the opposite side
