How To Install the Pedestal Video | Front Load Washer & Washer Dryer

Issue

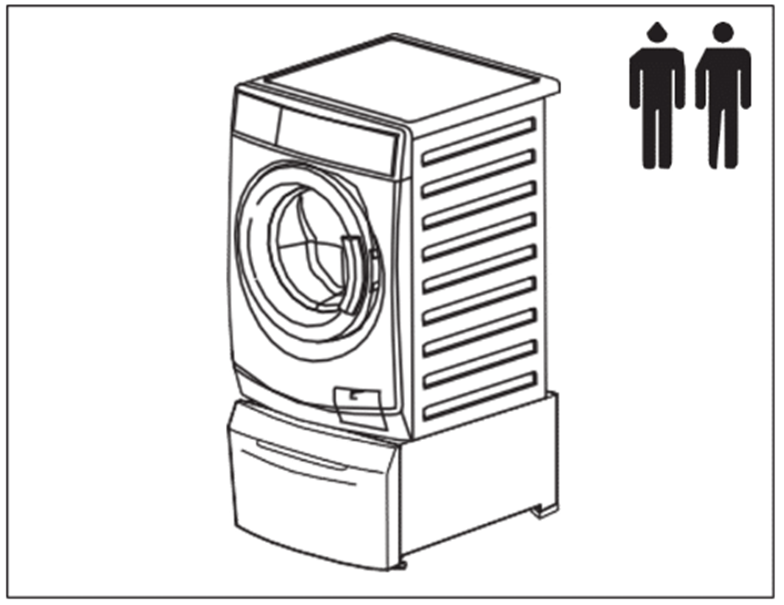

Learn how to install the pedestal for your front load washer or front load washer dryer

Applies to

• Front Load Washer
• Front Load Washer Dryer

Solution

Installation Procedure

Step 1

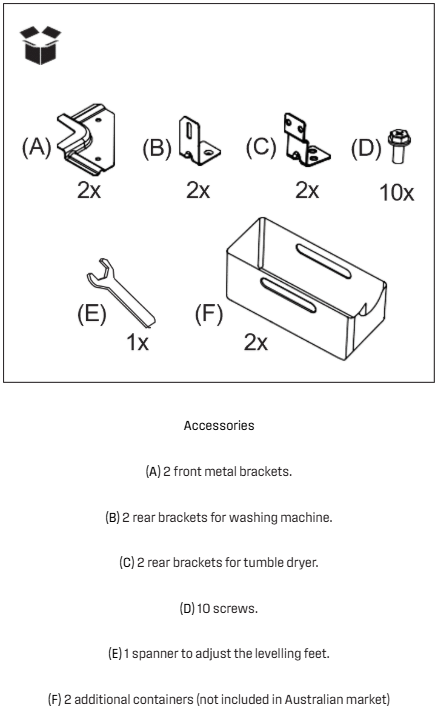

Remove the pedestal and all accessories from the box

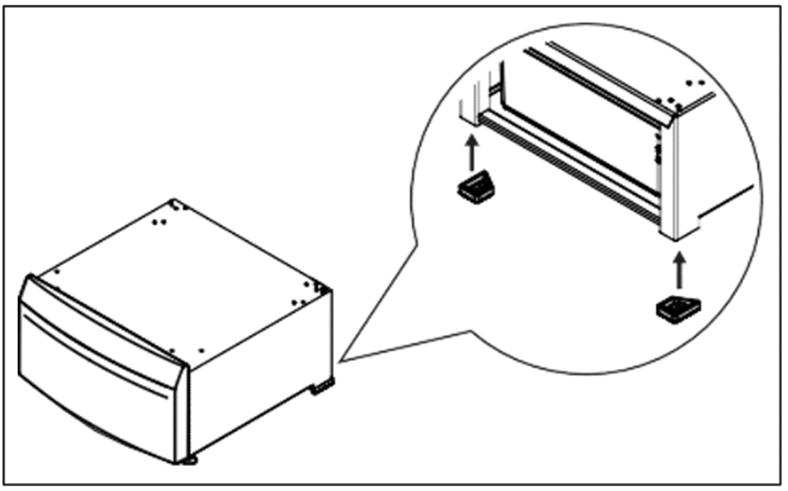

Make sure that the rear rubber feet are mounted

Step 2

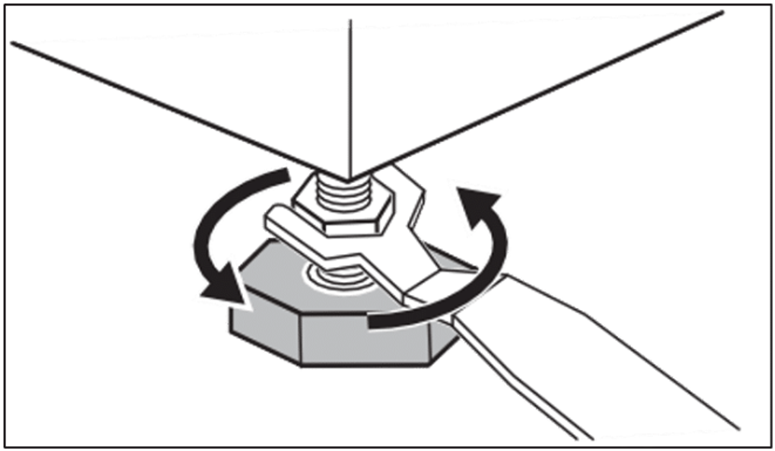

Adjust the front adjustable feet to make the pedestal stable

Step 3

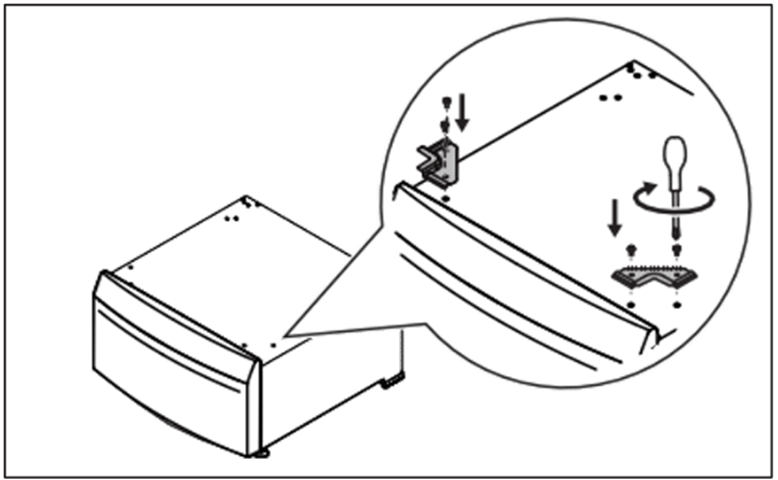

Screw the front brackets on the pedestal

Step 4

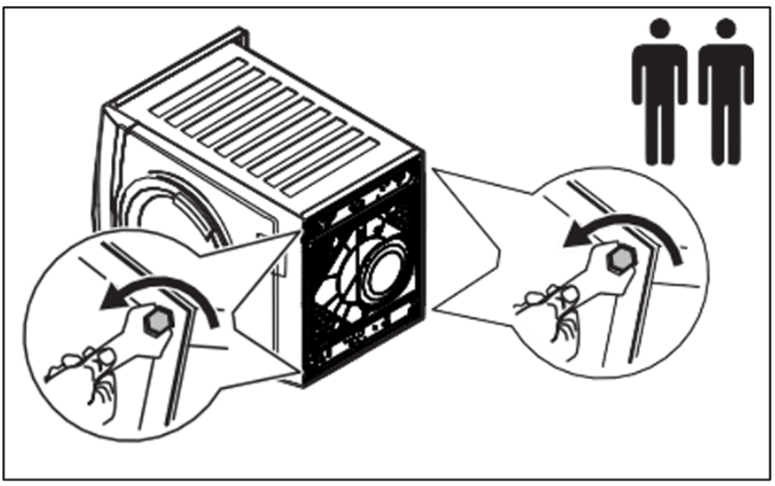

Gently lay the washing machine on its detergent dispenser side. Adjust the appliance adjustable feet at a suitable height to allow it to slide under the foot locking brackets

Step 5

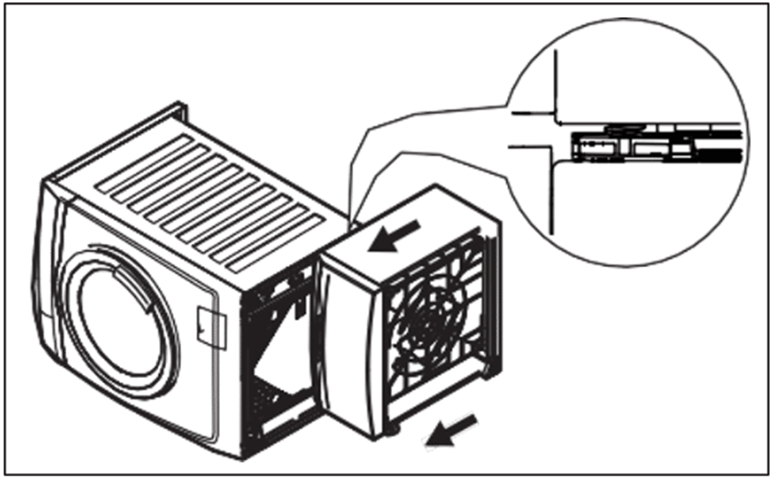

Lay the pedestal on the same side and slide it forward so that the appliance front feet slide under foot locking brackets

Step 6

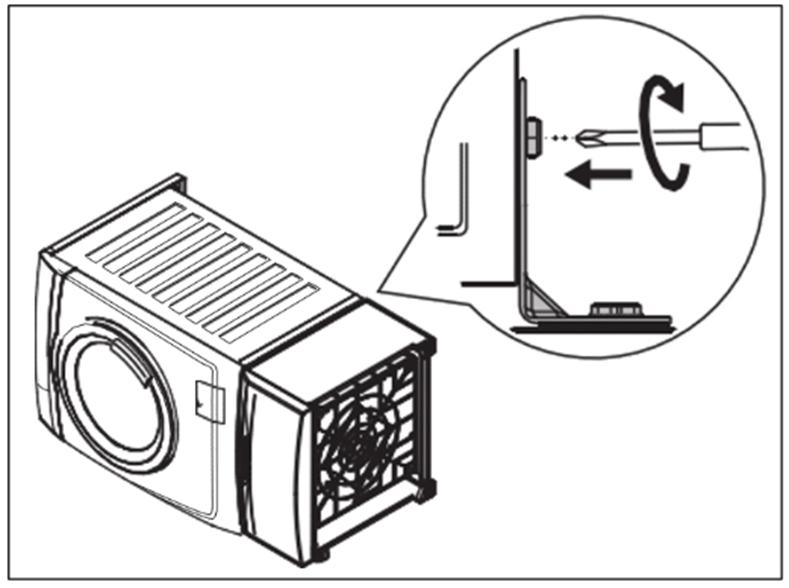

Use the screws supplied to secure the rear brackets (B) on both the washer and the pedestal.

Step 7

Put the pedestal and appliance in vertical position. If necessary, adjust the appliance feet and check that the screws are firmly screwed.

Step 8

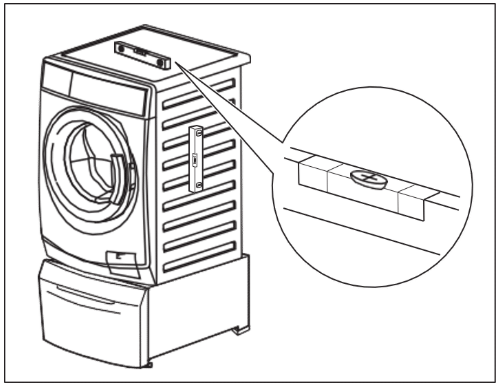

Move the Pedestal/Appliance assembly to its permanent location. Use a spirit level to check if the assembly is properly levelled. If not levelled, adjust feet to level properly
