How To Install the Pedestal Video | Dryer

Issue

Learn how to install the pedestal for your Westinghouse Dryer

Applies to

• Tumble Dryers

Solution

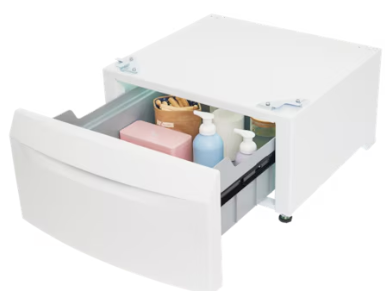

Laundry Pedestal with Drawer - Installation Procedure

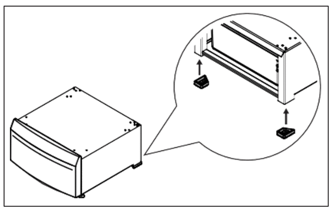

Step 1 - Make sure that the rear rubber feet are mounted

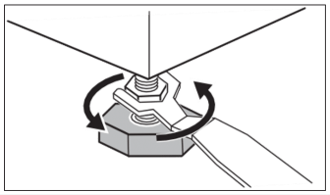

Step 2 - Adjust the front adjustable feet to make the pedestal stable

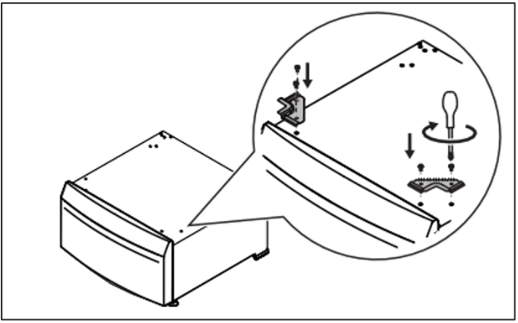

Step 3 - Screw the front brackets on the pedestal

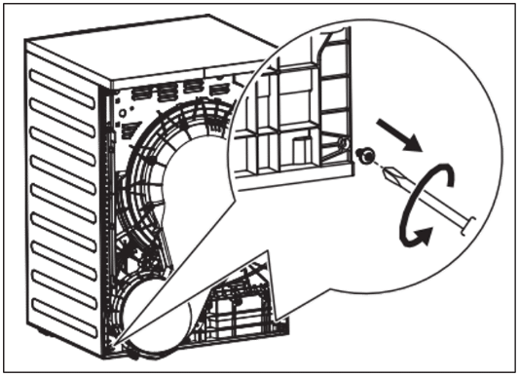

Step 4 - Unscrew and retain the two bottom screws from the back of the appliance

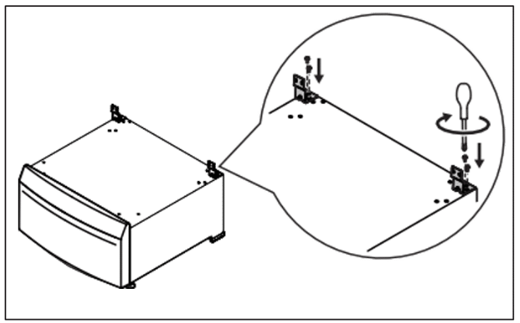

Step 5 - Screw the rear brackets (C) on the pedestal by using the screws supplied

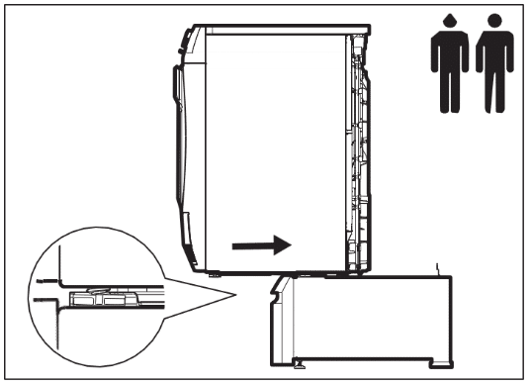

Step 6 - Lift the appliance and slide backwards so that the appliance front feet slide under foot locking brackets

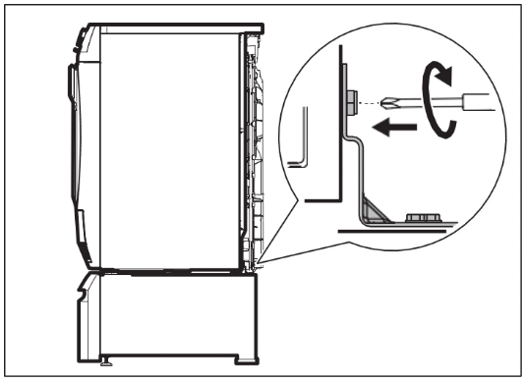

Step 7 - Screw the rear brackets to the back of the appliance by using the screws removed in step 4 and adjust the appliance feet if required

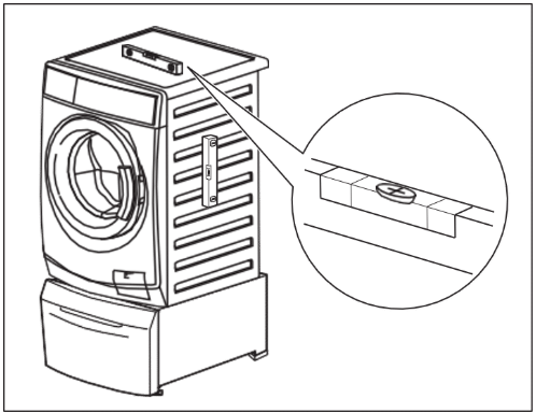

Step 8 - Move the Pedestal/Appliance assembly to its permanent location. Use a spirit level to check if the assembly is properly levelled. If not levelled, adjust feet to level properly
